Centimeter-level positioning

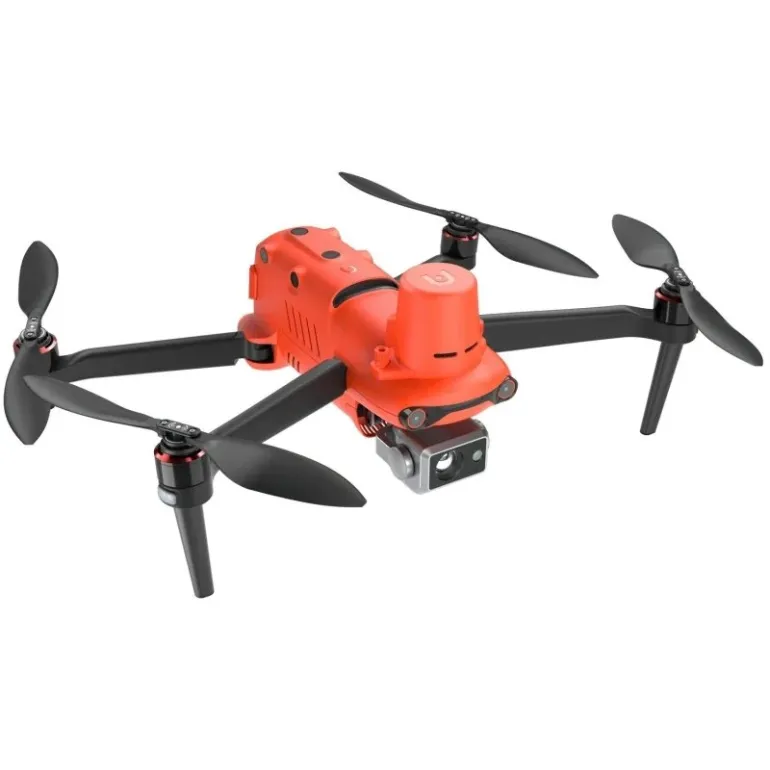

The EVO II RTK Series V3 features a new RTK module that provides centimeter-level positioning data in real-time and supports post-processing kinematics (PPK). It can record satellite observation output, camera exposure parameters, and much more. The positioning system supports RTK base stations and NTRIP RTK networks, helping to ensure accurate and stable data collection in challenging operating conditions.

No GCP required

The EVO II RTK Series V3 can connect to the NTRIP network and does not require GCP to provide centimeter accuracy.

Support for third-party base stations

The EVO II RTK Series V3 supports all NTRIP-compatible base stations.

Accurate temperature measurement

The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an entirely new Sony 1/2.8" sensor with a resolution of 50 megapixels RYYB. With digital zoom, it is easy to monitor distant targets. The system uses a new image processing algorithm that makes thermal image details clearer and more noticeable than competitors with similar resolution and hardware. The V3 can accurately detect heat sources from 2 to 20 meters away. Using an infrared temperature measurement compensation algorithm, the 640T RTK can adjust temperature deviations within 3 degrees Celsius.

Features:

• New image processing algorithm – The V3 system uses a brand new image processing algorithm that makes thermal details clearer and more noticeable than competitors with similar resolution and hardware.
• 30 Hz update rate for videogrammetry – The EVO II RTK Dual V3 provides a high update rate for accurate and detailed thermal 3D maps.
• Zoom in for details – Focus on important areas with 4x lossless zoom of the EVO II RTK V3 and 16x digital zoom.
• Multiple color palettes – White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow Lava | Arctic | Fire | Gradient | Hunting Detection

SkyLink 2.0 video transmission

SkyLink 2.0 is built into the EVO II Series V3 chipset, expanding capabilities for the most critical workflows.

• 9+ miles – Do more because you can fly further.
• QHD – Incredible video resolution within a mile, suitable for the most common use cases.
• 2.4 GHz/5.8 GHz/900 MHz (900 MHz applicable only for FCC countries) - SUPPORTS tri-band communication with automatic frequency hopping for maximum interference protection.

360° obstacle avoidance

Equipped with 19 groups of sensors, including 12 visual sensors, a main camera, ultrasonic, IMU, and other sensors, allowing for real-time 3D mapping and path planning.

Portable and easy to use

Compact design – The EVO II RTK Series V3 folds for easy transport and deployment.

Fail-safe daily work processes – The EVO II RTK Series V3 takes just 45 seconds from setup to takeoff.

Intelligent controller

The Autel V37 9-inch high-brightness Smart Controller V3 with 2000 nit brightness is clearly visible under direct sunlight. The SkyLink 2.0 transmission technology ensures operation at long distances of over 14 km and enhances interference protection capabilities through tri-band frequency hopping. The custom Android system provides additional flexibility with third-party applications, and the IP43 rating ensures operation in any weather conditions.

• Transmission range 9+ miles
• Maximum brightness 2000 nits
• 4.5 hours of operation
• IP43

Live Deck 2 broadcasting

Stream HD video in real-time to various devices, providing teams from different departments with enhanced situational awareness and communication, leading to faster and higher-quality decision-making.
